UV Division

Surface light source type UV-LED curing device
Views:21593 Date:2013-02-28【Back】

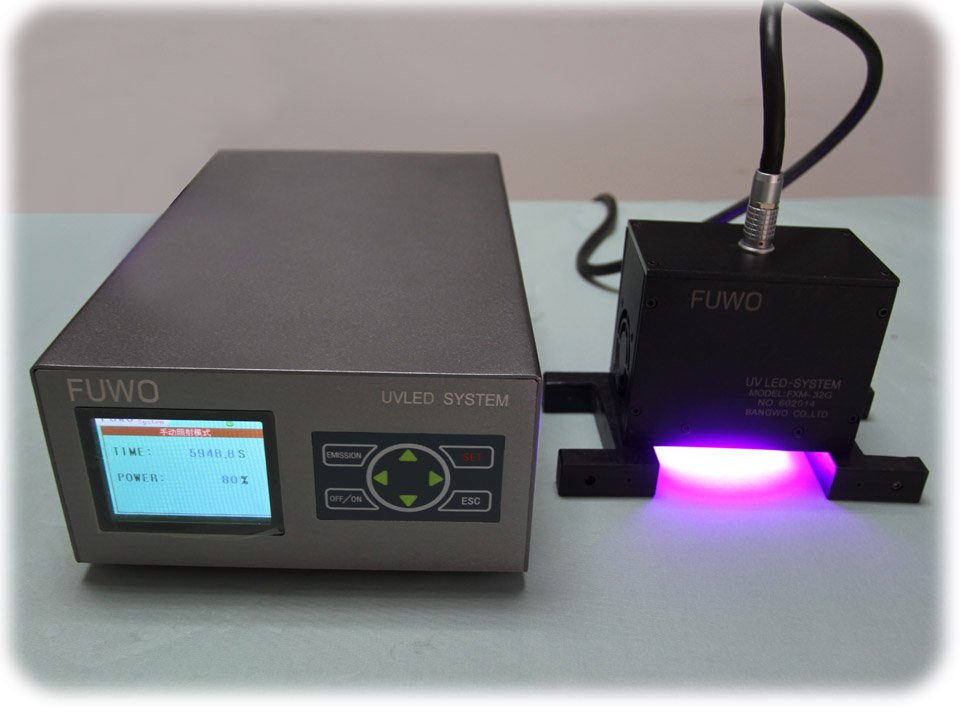

Click to enlarge

  • Product Name:Surface light source type UV-LED curing device
  • Product Model:SFMY-130130U
  • Product Category:UV Division
Details

      Bangwo Guangzhou Electronic Technology Co., Ltd. (referred to as: Bangwo Technology) is focused on industrial products (especially optoelectronic products) R & D, production, sales and service of integrated high-tech enterprises. In research and development, science and technology remain Bangwo the simultaneous development of science and technology with the world, focusing on the optimization and integration of technology, innovation and quality as the main line, always stand the forefront of industry technology, a number of products to open international product of its kind. Surface light source type UV-LED light curing device is our top science and technology through the integration of Japan, which lasted three years, developed a fourth-generation UV-LED light curing device, has been Europe and the United States, Japan and internationally renowned companies as well as domestic related industries widely used .

Product Features:面光源型UV LED光固化装置
1, a number of Sino-Japanese joint research and development leading technology;
2, using the worlds leading cooling technology, a unique matrix of UV-LED packaging technology, ensuring UV-LED light power is maximized;
3, the worlds unique patented optical technology to ensure optimum light power under the premise, to achieve uniform light almost perfect results, to meet customer demand for the highest requirements;
4, a variety of application modes, to meet the needs of a variety of areas;
5, with automatic power compensation system, further enhance the efficiency of production;
6, advanced solutions that enable irradiation head can automatically remember the total exposure time, feedback-related parameters, in order to solve customer production management issues;
7, with self-test function, if there is non-normal operation or irradiator open circuit, short-circuit and so on, the system will sound an alarm;



面光源UV-LED光固化装置面光源UV-LED光固化装置
Surface light source type UV-LED light curing device irradiation Figure 1Surface light source type UV-LED light curing device irradiation Figure 2

Prameters

The Effective Exposure Area

The Optical Power

Wave Length

Cooling Method

25 x 25

FDL Series

300~600 mw/cm2(365nm)

600~1000 mw/cm2(385nm)

800~1200 mw/cm2(395nm)

1000~1800 mw/cm2(405nm)



FDX Series

900~1800 mw/cm2(365nm)

1200~2200 mw/cm2(385nm)

1800~3500 mw/cm2(395nm)

2600~4000 mw/cm2(405nm)



365nm

385nm

395nm

405nm

Forced Cooling



Liquid Cooling

35 x 35

100 x 100

120 x 120

150 x 150

200 x 200

300 x 300

         Note: there are more series, the specification has not been fully recorded, welcome inquiries: 020-39259619 (line 10)
