Laser Division

Laser collimator
Views:11542 Date:2013-02-17【Back】

Click to enlarge

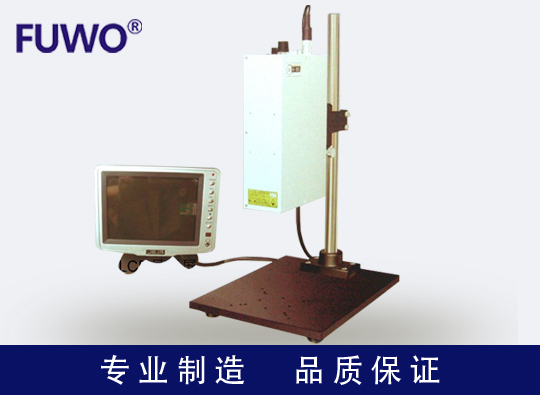

  • Product Name:Laser collimator
  • Product Model:HT-3030
  • Product Category:Laser Division
Details

    This equipment uses visible light semiconductor laser, the light receiving unit uses a 380,000-pixel CCD camera ultra-compact angular displacement test device. By the light projecting optical system and separated by the optical system without causing the measurement range becomes narrow, to maintain a small diameter of the radiation beam。
In addition, a polarization beam splitter used, 1/4λ plate, so that the light detection efficiency is extremely high, the low-reflection, Small inclination measurement area is also extremely easy, and do not select the application。

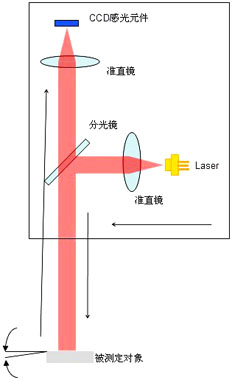

    Principle Icon                     Standard configuration

Autocollimator is shown, the laser light emitted by the laser LD object to be measured, reads the reflected light, so as to achieve the purpose of the angle detection



Practical examples:



Sensor

ModelMeasuring rangeResolutionDistance can be measuredOptional beam diameter
HT-3030± 0.5 degrees1 mark 0~150mmØ1~8

HT-3050

 ±1 degrees 2 mark 0~150mm Ø1~8
HT-3060 ±1 degrees 2 mark 0~150mm Ø1~8



LCD monitors

ModelSizeConnectorStandardScale (points)
XS-0505 inchesPlug / AdapterPAL30.50.60

XS-056

5.6 inchesPlug / AdapterPAL30.50.60
XS-0808 inchesPlug / AdapterPAL30.50.60

Annex

 Gantry

Gantry


ModelNameSize
JT-2026Gantry A200x260x400(mm)
JT-2021Gantry B200x210x400(mm)
Tilt mechanism
Tilt mechanism
ModelNameBody size
QX-100oblique A50x72x100(mm)
QX-070oblique B50x72x70(mm)

* Note: You can design all kinds of clamps according to customer demand



Splitter

Autocollimator emitted from the light beam is split into 2/3 of the beam emitted. Simultaneously for 2/3 target objects can be measured, and according to the measured object 90 degrees using a conversion board switch.

Two beamsThree beamsTwo of the original three-beam
ModelNameRange
FR-80Two splitters18-80(mm)
ModelNameRange
FS-80

Thirds dimmer

18-36(mm)
62-80(mm)
ModelNameRange
RQ-90Two splitters25-90(mm)
SQ-90Thirds dimmer25-40(mm)
75-90(mm)

Prameters

Light sourceWave length650nM ± 10nM
Emitted optical powermax10mW
Emitted light statusΦ2.0 φ8.0
The image isCCD size1/4
Video Signal SpecificationsPAL
External power supplySupply modeAC power adapter (attached) AC100-240V ~ 50-60Hz
ExportDC12V 1500mA
Feature

The tilt sensor is a semiconductor laser light source, so please be careful of static electricity.
Recommended parts fitted sensor ground using 10 ~ 35 ℃, above 35 ℃ environment when LD loss will accelerate, please note that due to losses caused by LD in any case repairs are paid
