Point source type UVLED light curing machine
Views:11830 Date:2013-02-27【Back】

Click to enlarge

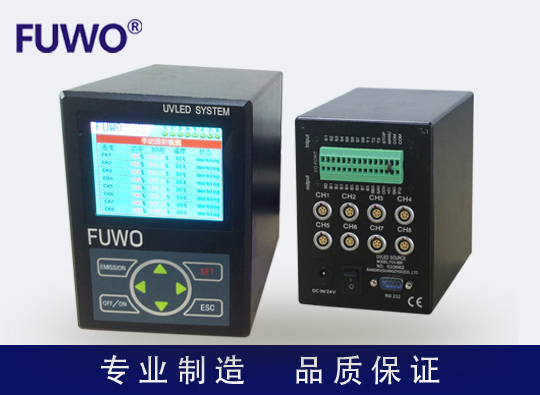

  • Product Name:Point source type UVLED light curing machine
  • Product Model:FUV-6BR
  • Product Category:UV Division
Details

      FUV-8BT/FUV-6BR is a Division I with the famous Japanese photoelectric Co. Ltd. jointly developed with international leading level UV LED light curing unit; the curing device is Division I hired consultants to Japan, the third generation and the fourth generation of UV curing device and developed using the latest technology in Japan; the device adopts ultraviolet LED chip with high energy 365nm control procedures mode of the controller, converts electrical signals into light energy signal, namely the ultraviolet LED chip high energy production of high purity 365nm ultraviolet, UV assembly so that the energy is highly concentrated uniform irradiation in UV glue, UV ink object through multiple sets of special optical lens, UV glue, UV ink in accordance with the requirements of the rapid solidification, significantly improve the curing efficiency and production efficiency.

Product characteristics:

1, a number of Sino-Japanese joint R & D technology to provide security.

2, the unique optical design, the light is good uniformity.

3, a variety of application mode control system meet the process demand, various collar could find.

4, with automatic optical power compensation system, the production efficiency is further improved.

5, high radiation intensity: 9600mw/cm2 output power, is the traditional lighting intensity more than 2 times; long service life: 40000 hours, while the traditional bulbs only 800-2000 hours; ultra small size: 98X138X160mm controller (WXHXL), the irradiation head: φ 12X108mm (L) can be used as a production line module using.

6, with a self-test function, if there is abnormal operation or irradiation head circuit, short circuit, over temperature, the system will alarm.

7, with no fan design, has the natural cooling technology leading international, the irradiation head temperature rapid cooling, security and LED chip long life but also to meet the application demand cleanliness higher; while the irradiation head is not overheating.

8, the curing mechanism of the irradiation channel can be controlled at the same time, can also be a separate control, can simultaneously satisfy the four stations at the same time, saving the cost of production.

External I/O interface 9, the curing device, RS-232 communication interface, can be controlled by foot switch, also can controller and PLC and various (robot) communication.

10, no preheating can instantly light irradiation, can be achieved by setting the power of irradiation (1-100%) output.

11, no heat radiation, exposure to the object temperature <5 ° C; while the traditional light bulb curing machine exposure to the object temperature rises to 50-80 ° C, easy to make the bonding position offset, resulting in poor product.

12, the irradiation head adopts a special cable, resistance to bending life of tens of millions of times, to meet different requirements of environment.

Prameters

Model

BUV series, FUV series
The number of irradiation head linkBUV Series: 1-4 independent irradiation head FUV Series: 1-8 independent irradiation head
Irradiation patternManual modeIrradiation (irradiation time cycle, dont stop), irradiation power (0% to 100%)
Automatic modeExposure time: 0 seconds to 9999.9 seconds (time interval 0.1 seconds to complete.) according to the set time. Range: 0% to 100% radiation intensity
The manual control modeSets the maximum 6 procedures, 8 steps, each step of the power and time can be set free, according to a set number of steps and trigger
Brake control modeSets the maximum 6 procedures, 8 steps, each step of the power and time can be set free, trigger only once can complete all irradiation program
External controlMethodsThe RS232 port and the I/O port (for communication with PCC, robot)
External inputIrradiation start / stop, emergency stop, interlocking, alone / all start / stop switch, product variety, pedal switch can control the irradiation start / end

External output

UV light irradiation output, alarm, READY signal, BUSY signal, the output signal of the +5V
Display contentThe LCD display, display the number of channels, power, irradiation time, temperature monitoring, the cumulative exposure time, fault state number, radiation pattern
Alarm display content

LED irradiation head too high temperature protection and monitoring, abnormal operation (if not power, plug irradiation head), leakage alarm, open / short circuit alarm etc.

Cooling modeNo fan of natural cooling
Voltage rangeThe AC adapter: INPUT:100V-240V 50/60HZ OUTPUT:7.5V 4A
Power consumption30W
The use of temperature / temperature range0 ℃ to 35 ℃ (below 85% without cream)
Temperature / temperature range010 ℃ to 60 ℃ (below 85% without cream)
Controller sizeWxHxL(96X136X160)

Weight

About 1000G
